Single Port Serial to Serial over Net or Serial to IP Converter

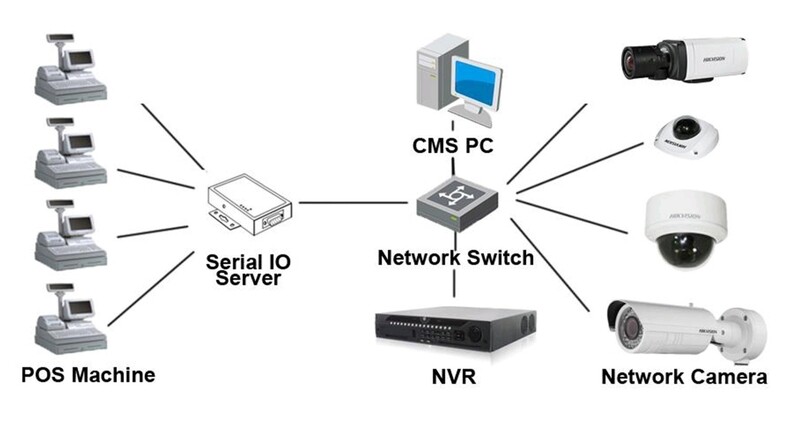

Use this device to read the serial data from either the register or printer and send it to an NVR/DVR using the Universal Protocol (Tcp or UDP) and port. This is useful when running an rs-232 wire is not reasonable or the distance is too long. If your recorder does not support the Universal Protocol and only rs-232, then you can purchase two of these send the data over the network and convert it back to serial. This is also a great solution if running wire is unreasonable.

Overview of Features:

Cortex-M3 MCU with 2MB Flash and 128KB SRAM.

Support TCP/IP/Telnet /Modbus TCP Protocol.

Support Serial To 10/100M Ethernet Conversion, Serial Speed Upto 921600 bps.

Support 10/100M Ethernet Auto-Negotiation.

Support Easy Configuration Through a Web Interface.

Support Keep Alive Connections for reliability and stability.

Support Security Protocol Such As TLS/AES/DES3.

Support Industrial Temperature: -40 to +85˚ C

DC Input 5~36VDC

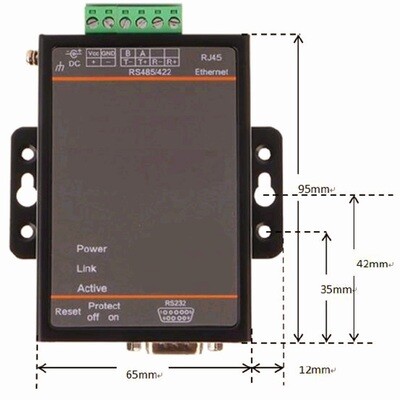

Size: 94 x 65 x 25 mm (L x W x H)

FCC/CE/RoHS Certificated
