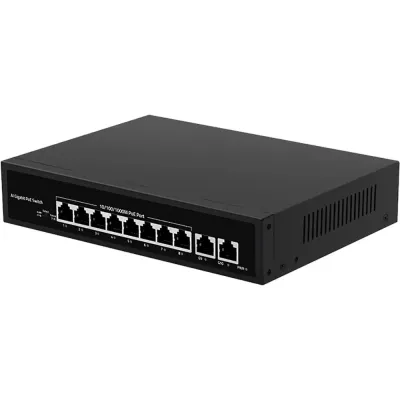

10 Port Full Gigabit Intelligent Standard PoE Switch, using high-quality high-speed network IC and the most stable POE chip, POE port meets 802.3af / 802.3at standard, this series of PoE Switch can be 10/100/1000M Ethernet. The network provides a seamless connection, and the PoE power port can automatically detect and power the powered devices that comply with the IEEE802.3af / IEEE802.3at standards. The non-POE device intelligently detects no power and only transmits data.

Product Overview:

• 8*10/100/1000M PoE Ports +2*1000M Ethernet Port
• Support IEEE 802.3, IEEE 802.3u, IEEE 802.3u
• IEEE802.3x standard
• Ethernet Ports support 10/100/1000M self-adaptive
• The AI mode is automatically enabled 10M speed for Ports 7-8 in Extend mode
• POE priority is supported, from port 1 to port 8, which is enabled by default
• Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standard
• Zero configuration feature, automatically supplied to adaptive equipment
• Panel indicator monitoring status and help failure analysis
• With DIP switch, support VLAN, Default and Extend modes
• Support Surge protection: Common mode 4KV; ESD: Air 8KV, Contact 6KV(level B)
