Cable HDCVI technology supports 4 signals to be transmitted over 1 coaxial cable simultaneously, i.e. video, audio*, data and power. Dual-way data transmission allows the HDCVI camera to interact with the HCVR, such as sending control signal or triggering alarm. Moreover, HDCVI technology supports PoC for construction flexibility. HDCVI technology inherits the born feature of simplicity from traditional analog surveillance system, making itself a best choice for investment protection. HDCVI system can seamlessly upgrade the traditional analog system without replacing existing coaxial cabling. The plug and play approach enables full HD video surveillance without the hassle of configuring a network.

Product Overview:

• 8 Channel
• HDCVI Camera 5MP, 4MP, 1080P@25/30fps, 720P@50/60fps, 720P@25/30fps
• AHD Camera 5MP, 4MP, 1080P@25/30, 720P@25/30fps
• TVI Camera 5MP, 4MP, 1080P@25/30, 720P@25/30fps
• CVBS Camera PAL/NTSC
• IP Camera Input 8+4CH, each channel up to 6MP

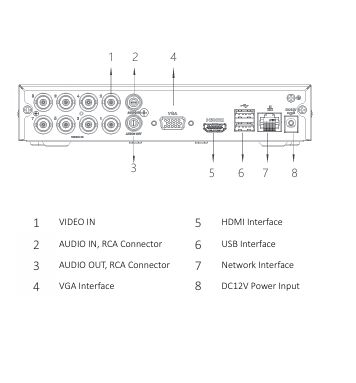

• Audio In/Out 1/1, RCA
• Two-way Talk Reuse audio in/out, RCA
• Video Compression AI Coding/H.265+/H.265/H.264+/H.264
• Resolution 5M-N, 4M-N, 1080P, 1080N, 720P, 960H, D1, CIF
• Record Rate Main stream: All channel 5M-N (1 fps–10 fps); 4M-N/1080p (1 fps–15 fps); 1080N/720p/960H/D1/CIF (1 fps–25/30 fps) Sub stream: D1/CIF (1 fps–15 fps)
• Video Bit Rate 32Kbps ~ 6144Kbps Per Channel
• Record Mode Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
• Record Interval 1 ~ 60 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post record: 10 ~ 300 sec
• Audio Compression G.711A; G.711U; PCM
• Audio Sample Rate 8KHz, 16 bit Per Channel
• Audio Bit Rate 64Kbps Per Channel
• Interface 1 HDMI ,1 VGA Resolution 1920×1080, 1280×1024, 1280×720 Multi-screen
• Display not enabled: 8CH: 1/4/8/9
• Display enabled: 8CH: 1/4/8/9/16

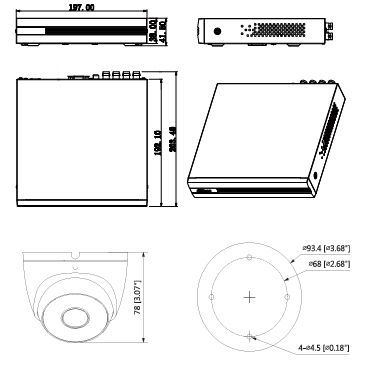

• Cooper 1U, 198.3 mm × 203.4 mm × 41.5 mm (7.81'' × 8.01'' × 1.63'')
• 2 USB ports (USB 2.0)
• 1 SATA Port, up to 6TB capacity
• Backup Mode USB Device/Network
• Power Supply 12V DC ±30%
• Power Consumption Max. 2.7W (12V DC, IR on)
• 2 year warranty
