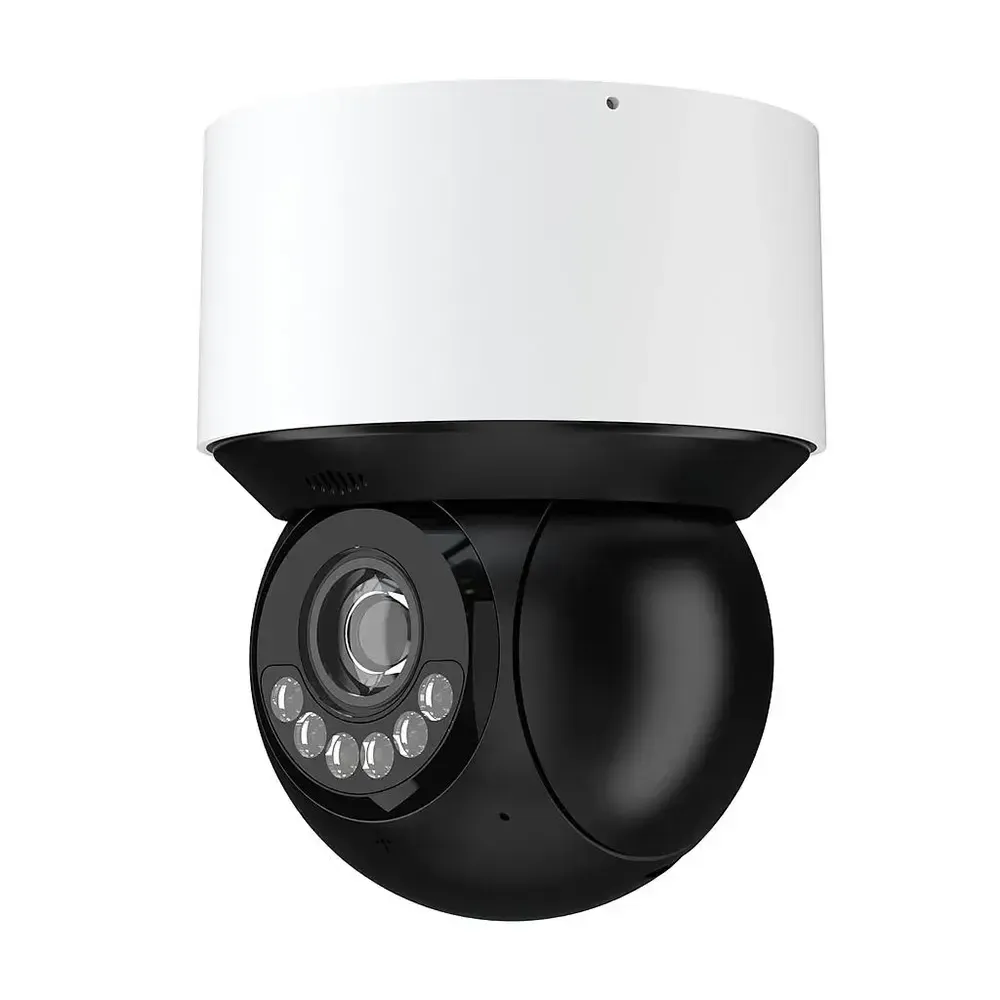

TD-8343IE3N (A/PE/04M/AR5) the 4MP 4x Network IR mini PTZ, adopts high quality 4x optical AF lens and could output max 4MP30fps ultra HD stream, covering a medium size area. Featuring its high performance, it could meet the demand of small-sized video surveillance application. The H.265 encoder could reduce video bandwidth to 50% of H.264 without loss of image details. With AI engine, it supports human/vehicle detection classification and auto tracking and active deterrence. Upon detecting of illegal intrusion, the camera will trace moving object, zoom fit in the center screen, turn on strong white light, play warning sound, until the object leave out of the perimeter area or time expired. Then the camera will return to patrol mode. With deterrence mode, the camera captures colorful images instead of B/W, improving confidence as court evidence. While in patrol, the PTZ keeps silent and no strong white light disturbs to neighbors and community. The series of PTZ conforms to the ONVIF specifications ensuring interoperability between network video products regardless of manufacturers, and also complies with NDAA 2019. This PTZ has metal main body, water-resistant glass, IP66/IK10 class protection, which could work 7/24H in common outdoor weather.

Product Overview:

• Progressive scan BSI+NIR image sensor
• Up to 2560×1440 resolution
• Mini illumination: Color: 0.01 lux @ (F1.6 AGC ON) 0 Lux with IR
• 4x optical zoom, fast and accurate
• 4 IR LEDs, 2 White LEDs
• Built-in Mics &Speaker
• 30mfor audiblewarnings,7m for voice recording
• AI-based human vehicle detection &classification and tracking, perimeter precaution, crossing line, etc.
• SD/TF card chamber, Reset button, Alarm in/out
• PoE+ or DC12V power supply, easy installation
• IP66 Water-proof, IK10 vandalism proof
• Onvif, API, SDK, IE/NVR/VMS/free
