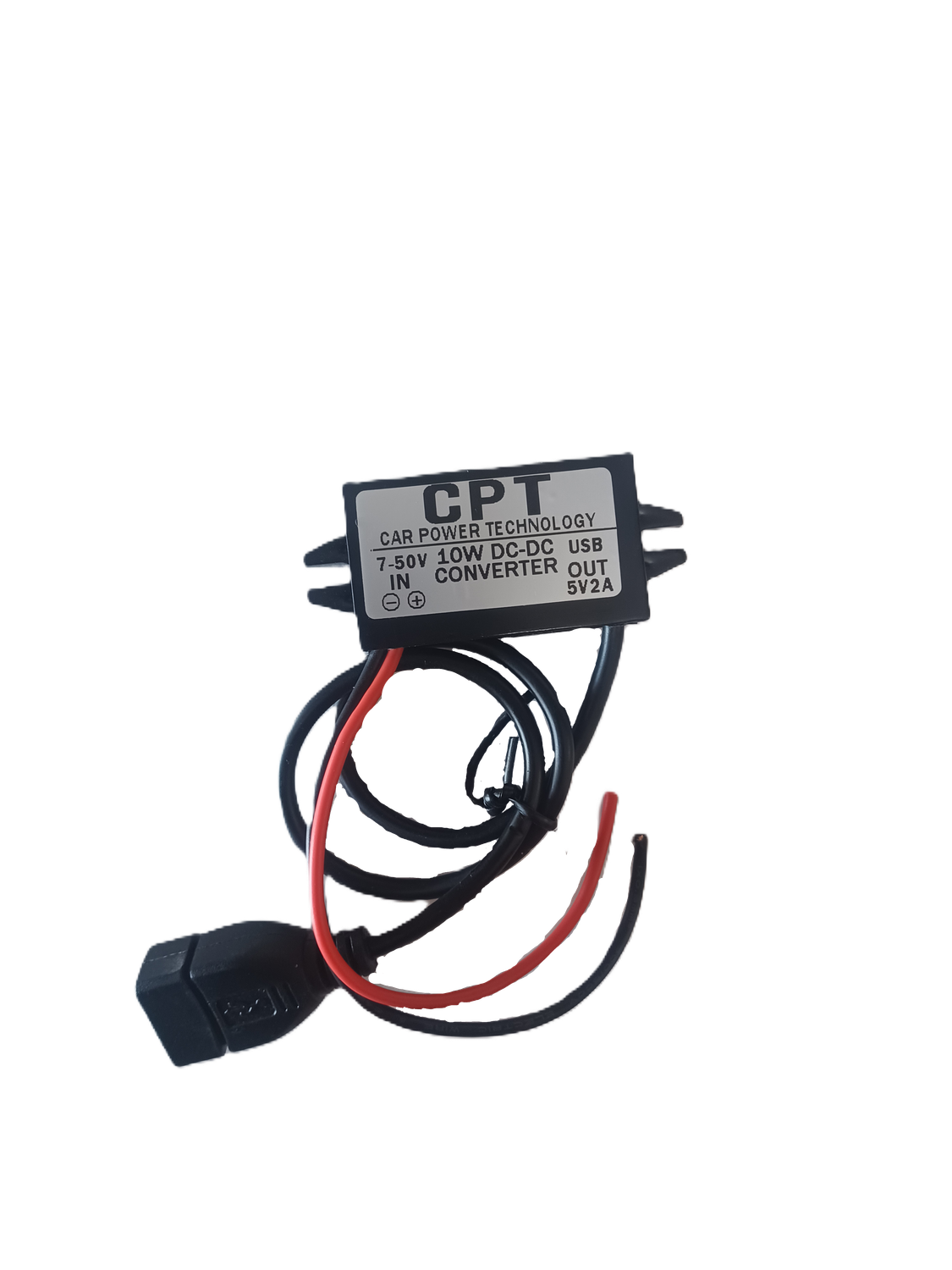

Light compact, convenient to use and transport; Switching mode power supply, Non-isolated, efficiency:> 90%; Ambient temperature at -10 ℃ ~ 65 ℃; with overload / over-current / over / low voltage protection, stable performance.

Product Overview:

• Full-load Efficiency: 90~94%***
• Ripple p-p: 1% of output voltage (MAX)
• Load Regulation: 1.5%
• Max Non-load Consumption: 0.5% of full-load power
• Over-load Protection: +10% of rated output current (over-load will damage this converter)
• Short-circuit Protection: yes
• Allowed Case Temperature: -10℃ ~ 75℃
• Storage Temperature: -20℃ ~ 80℃
• Storage Humidity: 20~90%
• Input Rage: 10 - 18 VDC

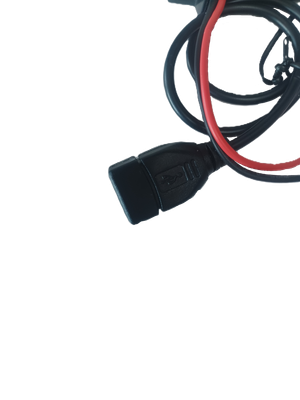

• Output: 5 VDC with USB port
• Max Output Current: 3A

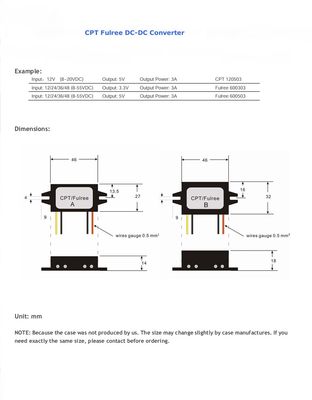

• Size: 46×27×14(mm)
